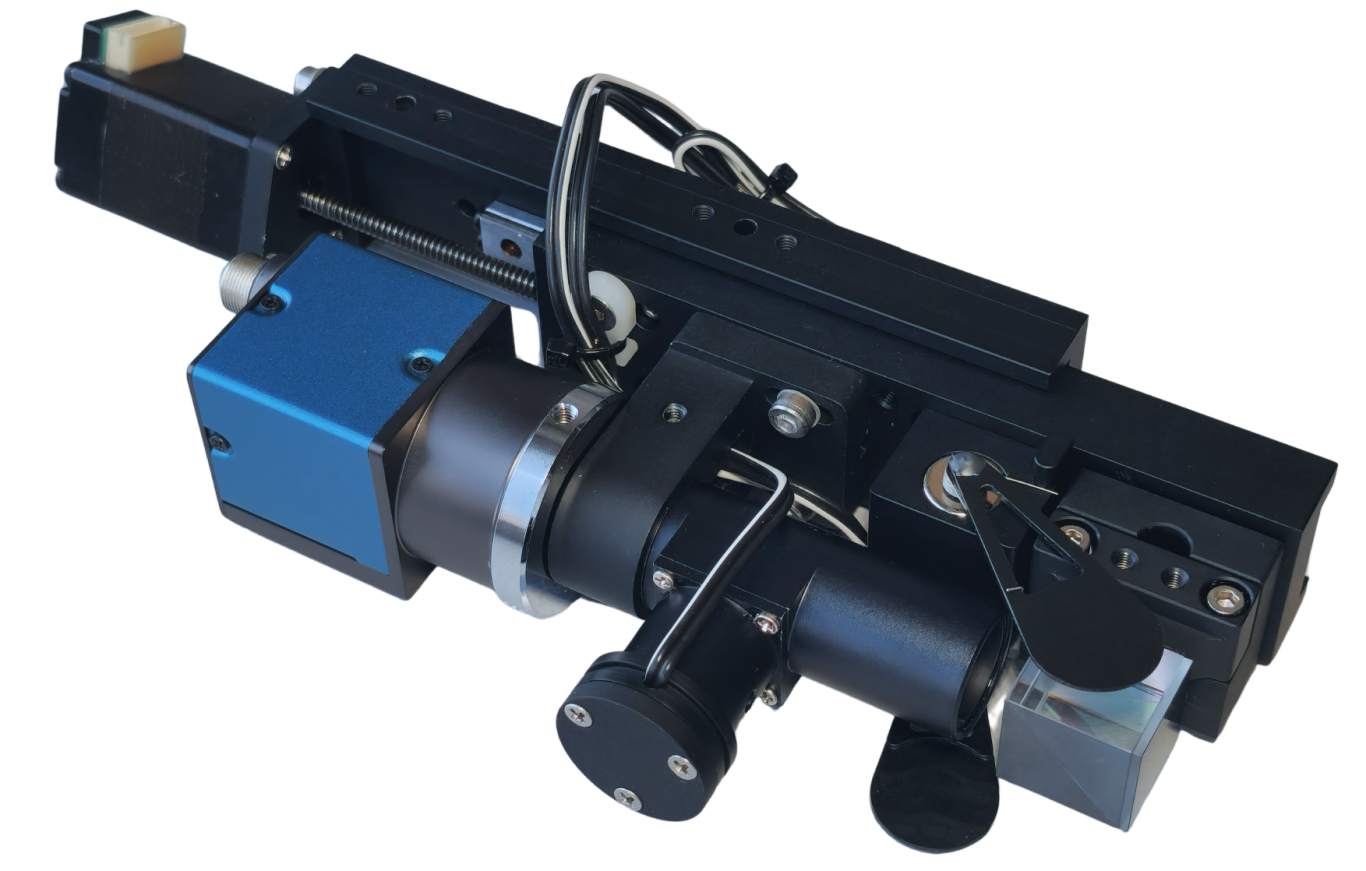

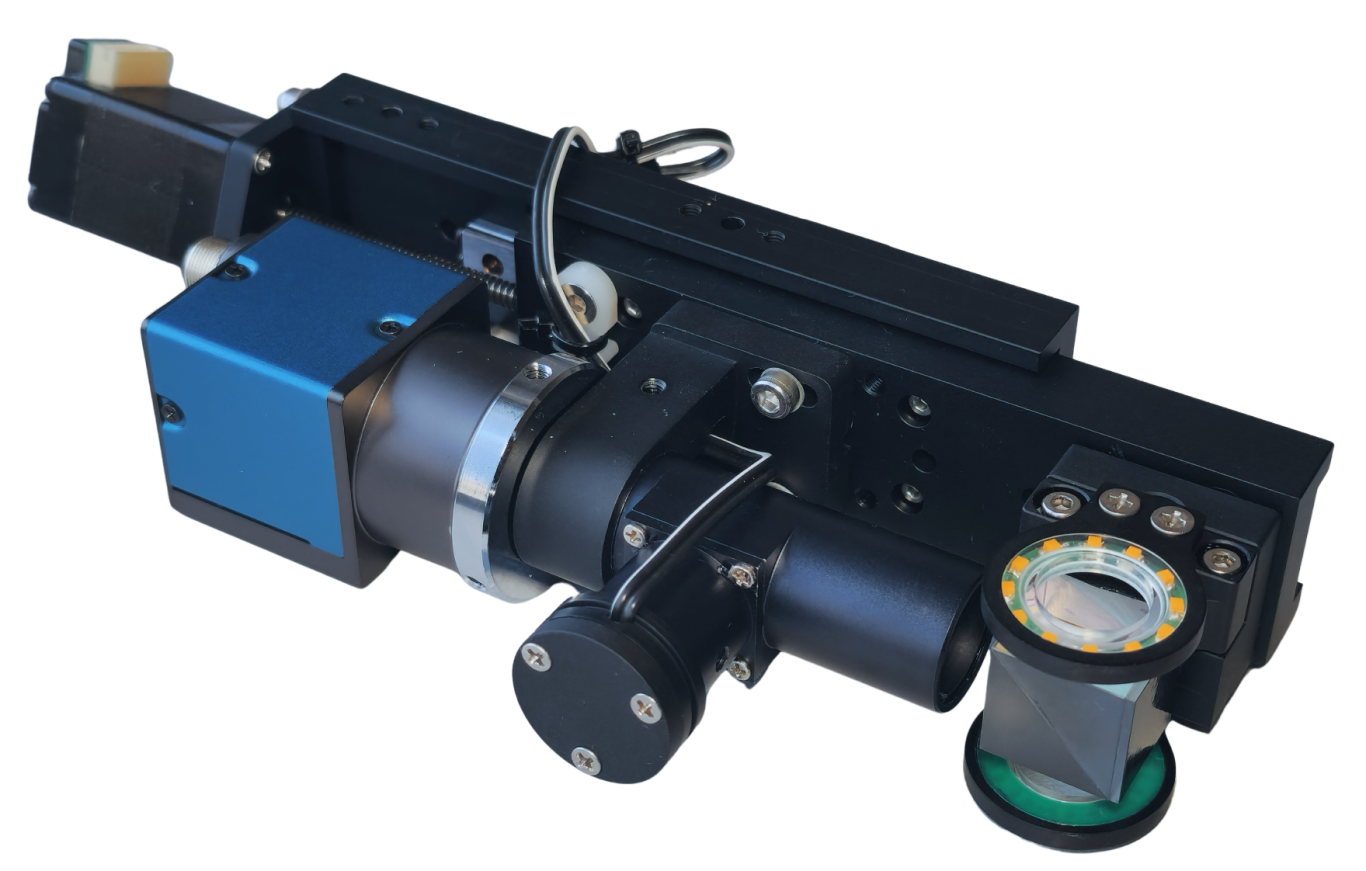

Split Field Optic is a module for the simultaneous optical superimposition of two opposing objects. It can be used wherever it is possible to place two objects that are aligned approximately parallel to each other between the split field optics. The two objects can now be superimposed simultaneously or, thanks to our new shutter function, viewed and/or manipulated separately from each other without any optical loss. At Paroteq, Split Field Optic is an integral part of our Die Bonder systems and is used for high-precision alignment of the joining partners.
To keep distortion to a minimum, telecentric lenses with different magnifications are used. Furthermore, it is possible to use coaxial and/or oblique lighting for the individual objects.
This makes it possible to adapt the Split Field Optic precisely to the requirements of the individual objects to be viewed and the installation situation.

Options:

• Coaxial lighting for top/bottom
• Angled lighting for top
• Angled lighting for bottom
• Various working distances
• Various magnifications
• Various cameras
• Various actuators (DC/ Stepper - Motors)
